American-Marsh Industrial Pumps

Kerr Pump & Supply is a distributor for American Marsh Pumps for the state of Michigan. American-Marsh Pumps, a Wilo company, is longstanding manufacturer of ANSI, end suction, split case, vertical sump, vertical turbine, and self-priming pumps. The American-Marsh Pumps product line offers a full selection of industrial pumps for various markets.

Kerr trusts American-Marsh Pumps’ reputation and 140 years+ of experience and expertise in pump manufacturing for industrial, municipal, agricultural, commercial and fire protection applications. As an American-Marsh Pumps distributor, Kerr offers these pumps in customized solutions for a variety of pumping applications.

Kerr Pump & Supply can quickly ship your American-Marsh pumps order or help you with pump rentals.

Kerr distributes the following American-Marsh pumps:

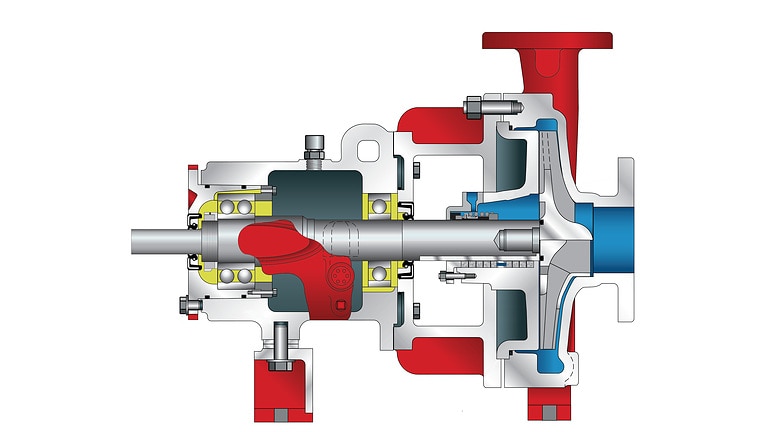

ANSI Pumps

Oil-lubricated ANSI pumps meet the harsh requirements of Process, Petrochemical, Pulp & Paper, Steel, and Municipal applications. These robust ANSI B73.1 Process Pumps offer a max flow of 7000 GPM and max head of 900 feet. They feature:

  • Heavy-duty castings
  • Oversized shafts
  • Single row inboard bearings and double row outboard bearings
  • Reverse-vane impellers (or optionally semi-open or low-flow impellers)
  • Back pull-out design
  • Materials of Construction – cast steel & 316 SS, with CD4 and other metallurgies available

End Suction Pumps

General purpose End Suction Pumps are available as close-coupled and flex-coupled inline end suction pumps for Agricultural, Commercial, Industrial, Municipal, Circulation, Booster, and HVAC applications.

These reliable End Suction Pumps offer a max flow of 9000 GPM and max head of 450 feet. They feature:

  • Back-pull out design
  • Centerline discharges
  • Cast integral feet with heavy-duty casings
  • Impellers with back pump out vanes
  • Oversized shafts
  • Materials of Construction – cast iron, stainless steel fitted, 810 component seal

Split Case Pumps

American-Marsh Pumps manufactures both Double-Suction Split Case Pumps and Two-Stage Horizontal Split Case Pumps.

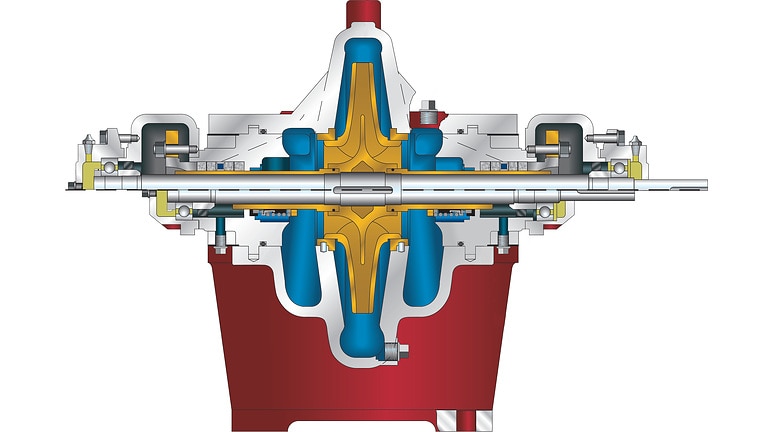

Double-suction split case pumps are used for Circulation Booster, HVAC, Transfer, Cooling tower, and Agricultural applications. These powerful split case pumps offer a max flow of 16,000 GPM and max head of 550 feet. They feature:

  • Heavy-duty casings
  • High-efficiency enclosed impellers
  • Oversized shafts
  • Materials of Construction – Cast iron with bronze fittings, other metallurgies available
  • Packed or mechanical seal

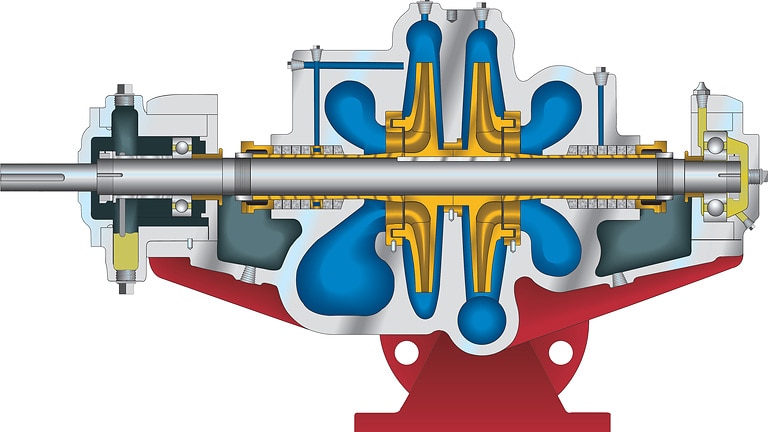

Two-stage split case pumps are used for moderate to high heads in Boiler feed, Condensate, and High pressure booster applications. These reliable split case pumps offer a max flow of 900 GPM and max head of 950 feet. They feature:

  • Operating speed up to 3600 RPM
  • Heavy-duty casings
  • High-efficiency enclosed impellers
  • Oversized shafts
  • Oil-lubricated bearings (optional)
  • Materials of Construction – Cast iron with bronze fittings

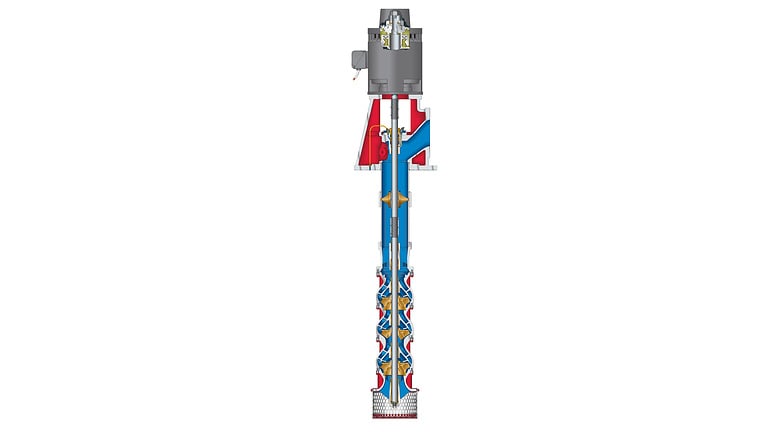

Vertical Sump Pumps

Vertical Sump Pumps are available for Drainage, Process fluid, and sump or storm water applications. These reliable Sump Pumps offer a max flow of 9000 GPM and max head of 900 feet. They feature:

  • Enclosed or semi-open impellers
  • Custom lengths up to 20 feet
  • Materials of Construction – cast iron, stainless steel fitted, other metallurgies available

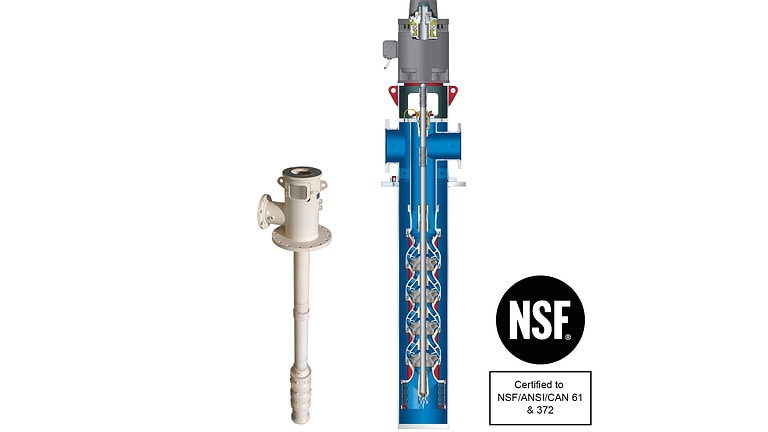

Vertical Turbine Pumps

Vertical turbine pumps are designed for a variety of Steel mill, Power plant, Water well, Commercial, Irrigation, and Municipal applications. These robust vertical turbine pumps offer a max flow of 30,000 GPM and max head of 1,000 feet. They feature:

  • Short set, deep set, submersible, mixed flow and propeller designs
  • Enamel coated bowl assemblies with bowl diameters: 5″-42″
  • Extra heavy-duty casings
  • Semi-open, enclosed, axial & mixed flow impellers
  • Open or enclosed lineshaft assemblies
  • Materials of Construction – Cast iron with bronze or stainless steel fittings, with other metallurgies available

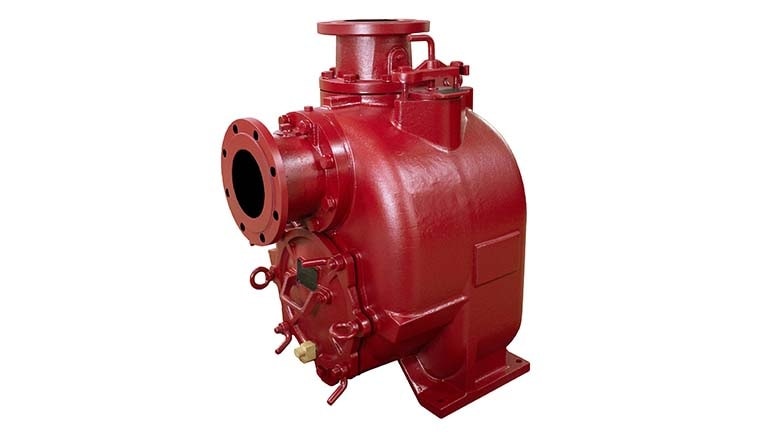

Self-Priming Pumps

Self-Priming Pumps are known for solids-handling capabilities with solids-laden liquids and slurries. They are used in Lift station, Sewage, Storm water, and Sewer bypass applications, offering a max flow of 3,250 GPM and max head of 200 feet. These Self-Priming Pumps feature:

  • Semi-open impellers
  • Replaceable wear plates
  • Easy-maintenance design allowing ability to adjust wear plate clearance without disturbing the rotating assembly and to adjust clearance without special tools
  • Belt driven & flex coupled options
  • Separate seal and bearing reservoirs with 2 sight glasses
  • Discharge sizes from 3″-10″
  • Materials of Construction – Cast iron casing with Ductile iron wear plates and impeller, Nitrile rubber gaskets, and SilCar/Silcar/Viton/316 SS Seal

Let the Kerr Sales Engineers design the right custom solution of American-Marsh Pumps for your particular application.
