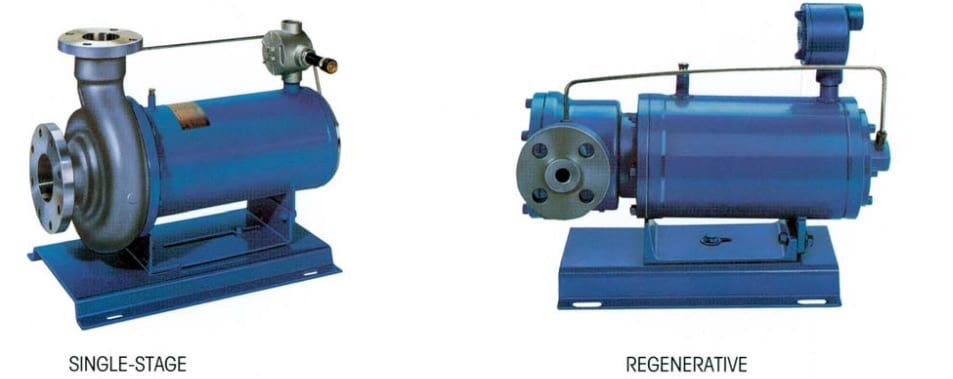

ChemPump G Series


Teikoku Chempump’s G Series canned motor pump has been the workhorse of the North American sealless pump industry for over 40 years. G Series pumps feature automatic hydraulic thrust balance, replaceable thrust surface design, direction of rotation indication and precision front and rear bearings.

G Series Chempumps are capable of pumping fluids from -400ºF to 1000ºF and working pressures up to 5000 psi. As with all Chempump products, no special tools, foundations, leveling or alignment are required for installation.

Optional features include:

  • Bearing Wear Detector
  • Leakproof Junction Box
  • Hardened bearings and journals
  • Circulation modifications (pressurized and reverse) for pumping volatile liquids
  • Inducers
  • Solids Handling
  • Explosion Proof Motors
  • High Temperature Motor insulation
  • Dry or solid filled stators

Special applications include:

  • Submerged designs
  • Lethal Service
  • Slurry Service
  • Nuclear Service
  • Canned Motor Drives

The G SERIES centrifugal pump is designed as a single sealless unit that has no stuffing box, no seals, no packing. Pumped fluids cannot leak out or be contaminated by in-leakage. No special tools, foundation, leveling or alignment are required for installation.

Choose from more than 100 models in 30 sizes from 1 to 125 HP, capacities to 2,000 GPM.
